  1. Basics
  2. Working with Things

Inspector

PreviousAttaching ThingsNextGroups and Assemblies

Last updated 1 year ago

When you press the Inspect button, as well as opening the Inspect Menu, it will also select the thing or selection of things pointed at in the Inspector.

Properties

Lock

When locked, a thing cannot be moved or destroyed.

Physics

When physics is enabled, the thing will fall under gravity and react to collisions.

Mass

The mass of the thing determiness how it reacts to collisions. A heavy thing colliding with a light thing will only be deflected a small amount while the light thing will be deflected a lot.

Bounciness

How much something bounces when it hits something else.

Friction

The amount of friction when something is dragging against something else.

Walkable On

If a thing is walkable on, a character can walk on it - otherwise a character will walk through it.

Holdable

If a thing is holdable, a performer can grab the thing when performing first-person.


Some things have materials that can hold images. If so, there will be an entry here.

Actions

Show Now

Hides the thing at start of time, and shows it now.

Show

Shows the thing now.

Hide

Hides the thing now.

Record a note

Records a voice memo attached to the thing. Can be useful for informing other team members.

Renaming Things

If you point at the name of the thing, a couple of buttons will appear: the red cross simply removes the thing from the current selection; but the pencil allows you to rename the thing.

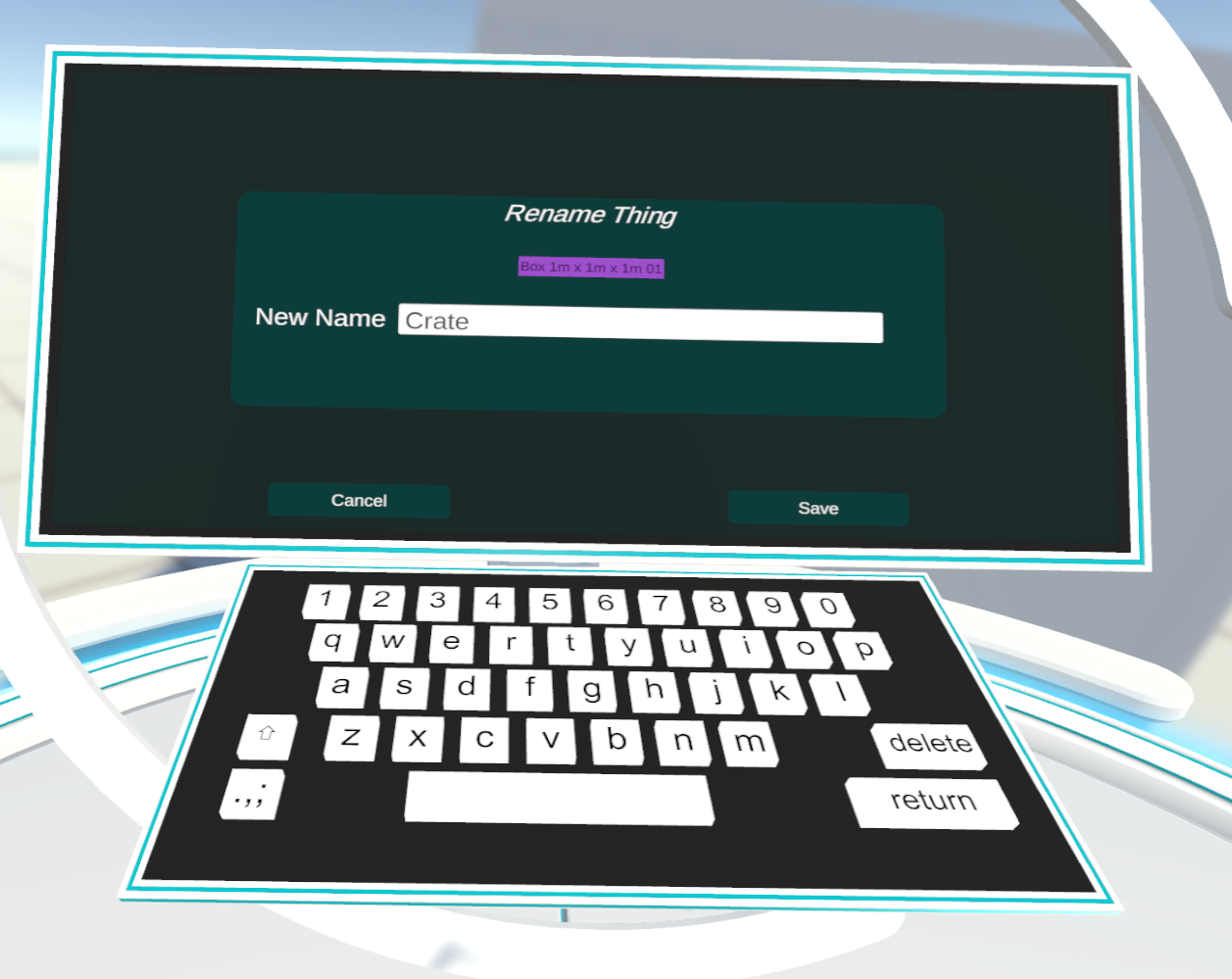

Pressing the rename button takes you to an inner space with a keyboard that you can use to type in a new name.

The form also appears on the desktop view of FirstStage allowing you to type with a real keyboard if you prefer.

Multiple Selection

You can also change properties for many things at once, by selecting them with the : all things selected will show at the top of the screen and the common properties shared by everything in the selection can be changed.
